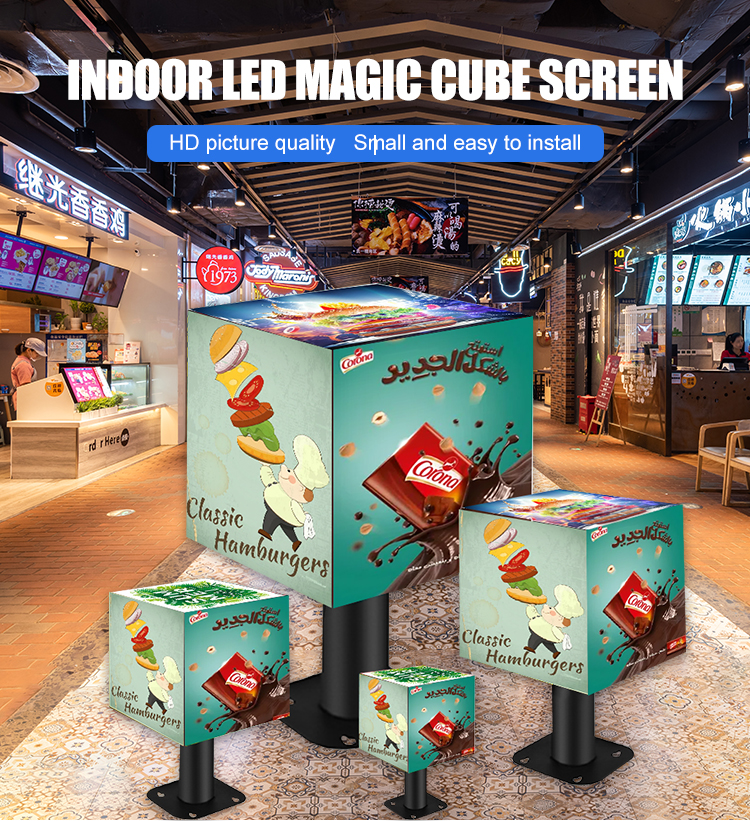

Shenzhen LED Full Color Module Cube Screen Indoor P2.5 Rubik’s Screen 320mmX320mm Cube Multi-Faceted Display Picture Signboard
Contact us for customized quotes
- Length: 320mm
- Width: 320mm
- Model Number: Indoor P2.5
- Voltage: 110-220V
- Brand Name: LOYUE
- Origin: Mainland China
- Certification: CCC
- Item Type: LED Modules
- Application:: Indoor
- Color:: full color

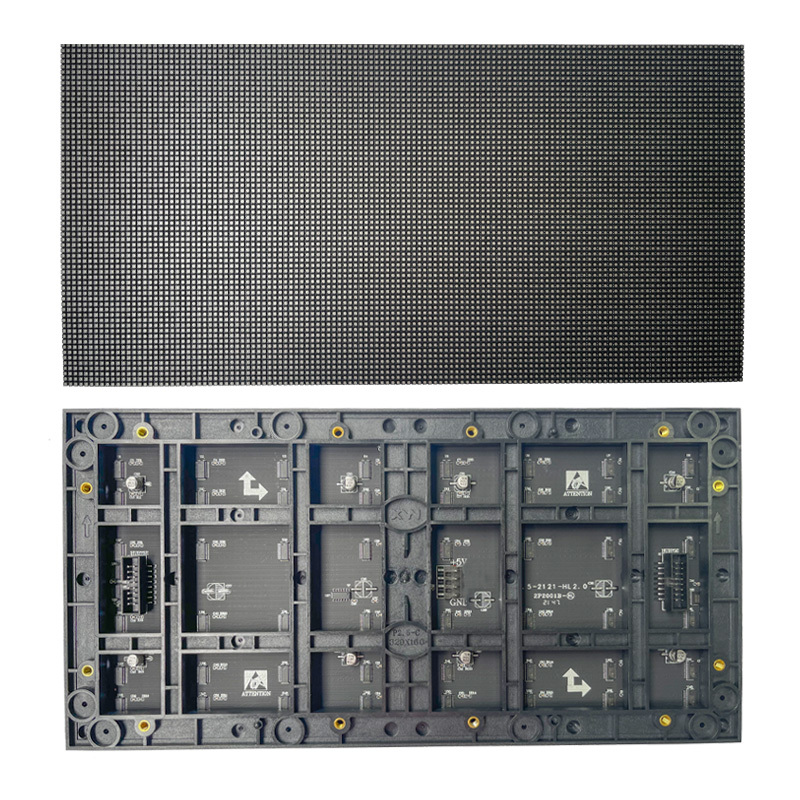

- Panel Size:: 320mm*160mm
- Pixel Pitch:: 2.5mm
- Scan mode:: 1/32 scan
- Pixel composition:: RGB(SMD 3-in-1)
- Viewing angle:: Horizontal: ≥140° Vertical ≥120°
Best Selling LED Full Color Module Cube Screen Indoor P2.5 320mmX320mm Screen Cube Multi-Faceted Display Picture Signboard
|
Pixel composition
|
1R 1G 1B (SMD2121/2020)
|
|
Pixel pitch
|
2.5mm
|
|
Module size
|
320mm*160mm
|
|
Module resolution
|
64*128
|
|
LED packaging manufacturers
|
Nationstar/Kinglight/Hongsheng
|
|
Maximum white balance brightness
|
≥6500cd/㎡
|
|
Gray level
|
16bits
|
|
Display color
|
281 trillion
|
|
Out of Control Points
|
≤0.0001
|
|
Best sight distance
|
≥3M
|
|
Viewing Angle (H/V)
|
Horizontal: ≥160° Vertical ≥160°
|
|
Scanning method
|
1/32 scan
|
|
Frame rate
|
≥60HZ
|
|
Refresh rate
|
≥1980HZ
|
|
Way to control
|
Mobile APP (WiFl)
|
|
Compatible
|
HDMI, SDI, S-Videom, MP4
|
|
Screen life
|
≥80,000 hours.
|
|
Continuous working time
|
＞72 hours
|
|
Waterproof level
|
IP55
|
|
Operating Voltage
|
AC 240/100 ± 10%, 50Hz/60Hz
|
|
Ambient temperature/humidity
|
Temperature: -20℃～+60℃, Humidity: 10%-60%
|
|
Power consumption (max/average)
|
160W, 50W
|
|
Maintain
|
Rear-maintenance
|
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in
one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667–20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used
for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than
20sqm) need to use synchronous control system,below 20sqm it’s up to you to use syn or asyn.But asyn control system’s refresh rate
is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4:How to order from you compamy?
A:You can both place order to us by Aliexpress online or to our company directly offline, before place order welcome to contact us
for confirmation.
Q5:How to pay?
A:We accept payment online through Aliexpress , or offline to our company account by T/T bank, or paypal or westerunion.
Q6:How to ship?
A:It is optional and we respect customer’s choice. You can choose to ship by air cargo, by DHL(Fedex,UPS etc) internation express
company, or by sea according to your goods weight and volume and the delivery time you need.
Q7:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo
or send our engineer fly to you for help if needed.
